介面
SDI視頻輸入
1
SDI視頻輸出
1 loop out.
SDI速率
270Mb, 1.5G, 3G, 6G, 12G.
HDMI 2.0視頻輸出
1
多速率支援
SDI and HDMI are switchable between standard definition, high definition and
ultra high definition.
SDI視頻環路
1 x reclocked 10‑bit SD‑SDI, HD‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI.
模擬音頻輸入
2 x XLR. 2 x RCA HiFi.
模擬音頻輸出
1 x 6.5mm headphone socket.
數位音頻輸入
1 x XLR.
內置揚聲器
Stereo with 2‑way crossover and independent stereo subwoofers.
AES/EBU音頻輸入
2 channels balanced 110Ω AES/EBU via XLR.
SDI音頻輸入
16 channels embedded in SD, HD and UltraHD 4K.
SDI音頻輸出
16 channels embedded audio loop out.
HDMI音頻輸出
8 Channels embedded in SD, HD and 4K.
乙太網
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110
IP video in, configuration and firmware updates.
電腦介面
USB‑C for configuration and firmware updates.
Metering
2 x 27 RGB segment LED VU, PPM or Loudness meters.
Modes
Push button interface allows for input selection, channel selection,
independent left and right audio, mute and volume control with scroll wheel.
格式
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50、720p59.94、720p60
1080i50、1080i59.94、1080i60
1080p23.98、1080p24、1080p25、1080p29.97、1080p30、1080p47.95、1080p48、1080p50、1080p59.94、1080p60
1080PsF23.98、1080PsF24、1080PsF25、1080PsF29.97、1080PsF30
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K 23.98PsF, 2K 24PsF, 2K 25PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50,
2160p59.94, 2160p60
4K Video Standards
4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50,
4KDCIp59.94, 4KDCIp60
SDI Compliance
SMPTE 259M、SMPTE 292M、SMPTE 296M、SMPTE 424M、SMPTE 425M A級和B級、SMPTE
2081‑1、SMPTE 2081‑10、SMPTE 2082‑1、SMPTE 2082‑10、SMPTE 2110‑20、SMPTE
2110‑21、SMPTE 2110‑30、SMPTE 2110‑40、SMPTE 2084、SMPTE 2108‑1.
SDI Auto Switching
Automatically selects between SD, HD, 3G‑SDI level A and B, 6G‑SDI
and 12G‑SDI.
Audio Sampling
96 KHz and 24 bit.
Video Sampling
4:2:2 and 4:4:4
音頻表軌跡
54 RGB segment LEDs allowing selection of metering with VU, PPM EBU, PPM BBC
or Loudness. Includes replaceable level scale.
IP視頻規範
SMPTE 2110‑20 (Uncompressed Video)
IGMP v2
SMPTE 2110‑21 (Traffic Shaping)
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110‑30 (PCM)
Audio Conformance level: Level C
SMPTE 2110‑40 (Ancillary Data)
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE
12M-2, closed captioning and HDR static metadata.
PTP精確時間協議
IEEE 1588‑2008 (PTP v2)
ST 2059‑1
ST 2059‑2
NMOS IS‑04 Discovery and Registration
v1.3.2
Peer‑to-peer via mDNS/DNS‑SD
NMOS IS‑05 Connection Management
v1.1.2
NMOS BCP‑002‑01
Natural Grouping
NMOS BCP‑004‑01
Receiver capabilities
Codec
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP
video.
控制
Built-in Control Panel
2.2 inch display for viewing video input, video standard and selected
audio input.
軟體
Internal Software Upgrade
Via USB connection and Ethernet
作業系統
Mac 10.13 High Sierra、
Mac 10.14 Mojave或更高版本。
Windows 8.1和10作業系統。
顯示器
Display Element
2.2 inch diagonal color LCD.
Display Resolution
320 x 240.
Input Display
SDI video, format, audio type and audio channels.
電源要求
Power Supply
1 x Internal 100 - 240V AC.
Power Usage
55 Watts
物理安裝
1 rack unit.
物理規格
環境規格
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
裝箱配置

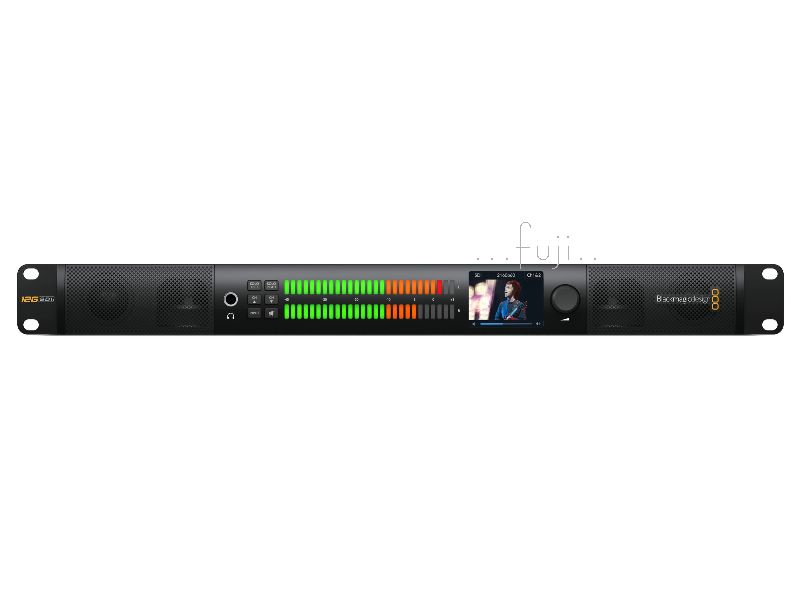

Blackmagic Audio Monitor 12G G3
PPM and Loudness Scale Stickers
歡迎卡內含QR碼，可用於軟體下載。
保修
12 Month Limited Manufacturer's Warranty.
