Description of Parts & LCD Display
適用機種: 具有熱靴的相機皆可,包含 NIKON尼康、FUJIFILM富士、CANON佳能、 OLYMPUS奧林巴斯、PANASONIC / LUMIX 國際牌 LEICA徠卡、KYOCERA京瓷 / CONTAX、RICOH理光、PENTAX賓得士,SONY α系 / KM 系統需選購 KONICAMINOLTA / SONY用閃燈轉接座(同FS-1100) 或 SONY原廠FA-ST1AM外接閃燈同步座 (X接點)
能夠使用兩種閃光形式:手動控制以及自動感光控制。在前者的狀態下,能夠全光或是以9個級別( FULL、1/2、1/4、1/8、1/16、1/32、1/64、1/128、1/256 )進行調整。另外一種則是感知自然光後自動調整輸出量。
如果使用在於近拍,站長建議使用手動,固定距離並使用光圈先決或手動曝光,抓個兩三次就很準。
SUNPAK是日本攝影器材附件生產商,閃燈、濾鏡等產品一應俱全,歷史相當悠久
Shooting Distance (ISO 100・m) (m)
Power Ratio | f/stop | ||||||||
22 | 16 | 11 | 8 | 5.6 | 4 | 2.8 | 2 | 1.4 | |
1/1 | 0.7 | 1 | 1.4 | 2 | 2.8 | 4 | 5.6 | 8 | 11 |
1/2 | 0.7 | 1 | 1.4 | 2 | 2.8 | 4 | 5.6 | 8 | |
1/4 | 0.7 | 1 | 1.4 | 2 | 2.8 | 4 | 5.6 | ||
1/8 | 0.7 | 1 | 1.4 | 2 | 2.8 | 4 | |||
1/16 | 0.7 | 1 | 1.4 | 2 | 2.8 | ||||
1/32 | 0.7 | 1 | 1.4 | 2 | |||||
1/64 | 0.7 | 1 | 1.4 | ||||||
1/128 | 0.7 | 1 | |||||||
1/256 | 0.7 |
Power Ratio | Guide Number (ISO 100・m) | Flash Speed |
1/1 | 16 | 1/200sec. |
1/2 | 11 | 1/1000sec. |
1/4 | 8 | 1/2000sec. |
1/8 | 5.6 | 1/4000sec. |
1/16 | 4 | 1/8000sec. |
1/32 | 2.8 | 1/10000sec. |
1/64 | 2 | 1/20000sec. |
1/128 | 1.4 | 1/40000sec. |
1/256 | 1 | 1/60000sec. |

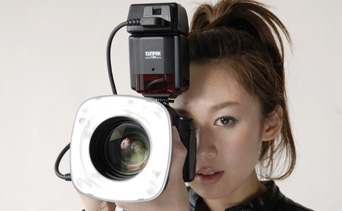

With the auto16R pro as your main
ash, you can use it in combination with the digital slave unit
DSU-01* for manual ring of the PZ42X or PZ40X. Or with the PZ42X or
PZ40X as your main ash, you can use the auto16R pro with the digital
slave unit DSU-01. *Optional. |
Using a clip-on ash. |
Using the auto16R pro. |
Some unique characteristics are its
special softness and sense of transparency, because it can project an even amount of light across the entire surface. It will not create shadows in the background, even at close distances. |
Lighting-up the focus lights. |
There are four compact, white LED lights which can provide autofocus assit or can be used as a modeling lamp for manual focusing. |
Guide Number (ISO 100-m) | 1∼16 |
Flash Control Mode | Manual (Power Ratio, Multi), Flash Auto |
Compatible Cameras | Digital and lm SLR cameras. |
Wireless Function | - |
Recycling Time | *Full flashing | Alkaline Battery |
4-AA approx. 8 sec. |
Ni-MH Battery |
4-AA approx. 7.5 sec. |
No. of Flashes | *Full flashing | Alkaline Battery |
4-AA approx. 100 |
Ni-MH Battery |
4-AA approx. 120 |
Auto Effective Range (Focal Length at 35mm) |
Flash Auto 0.7∼8m |
Power Ratio | FULL,1/2,1/4,1/8,1/16,1/32,1/64,1/128,1/256 |
Angle of Coverage | 80°×80° |
Effective Range of AF Assist Light | - |
Flash Speed | Approx. 1/200∼1/60,000 sec. |
Bounce Flash | - |
Wide Panel | - |
Zoom Position Display (switch type) |
- |
Dimensions (H*W*D) (w/o Shoe) |
Ring Flash Head: Approx.
120x120x32mm / 4.8x4.8x1.3in (excl. cord) Power Supplier: Approx. 130x75x65mm / 5.2x3x2.6in |
Weight (w/o Battery) | Ring Flash Head: Approx. 150g /
47.3oz Power Supply: Approx. 300g / 10.5oz |
Accessory | Adapter ring (Φ58, 62, 72mm) |
EAN (maker code 4960436) | 023973 |
燈頭安裝尺寸:通過轉換接圈,可將閃光燈燈頭安裝在鏡頭前的濾鏡螺紋上,適用 範圍由49毫米至72毫米。
保固:總代理公司貨一年保固
各式機型所需尺寸轉接環(購買時請於訂購備註欄告知使用機型)可另外選購接頭
數位蘋果網經銷 SUNPAK 全系列閃光燈產品 如果網路找不到的.歡迎來信洽詢
樣本
使用前
使用後
